• Country
• Austria

• Manufacturer / Brand
• Radione (RADIO Nikolaus Eltz); Wien

• Year
• 1957 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 76049

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM85 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 461 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

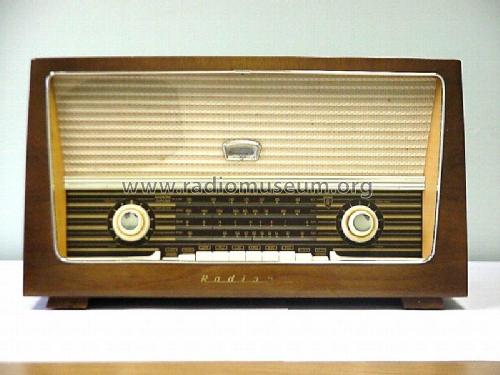

• Model: Jupiter W - Radione RADIO Nikolaus Eltz;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 150 x 94 x 88 mm / 5.9 x 3.7 x 3.5 inch

• Notes
• Exportgerät (US-Skala) mit Röhre EM85 statt EM84.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Hans Amberger. See "Data change" for further contributors.
