• Country
• Austria

• Manufacturer / Brand
• Radione (RADIO Nikolaus Eltz); Wien

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 10305

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• AK2 AF3 ABC1 AL4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 128,5 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 105-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

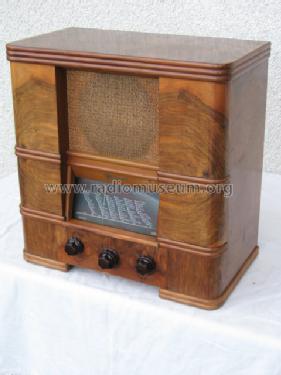

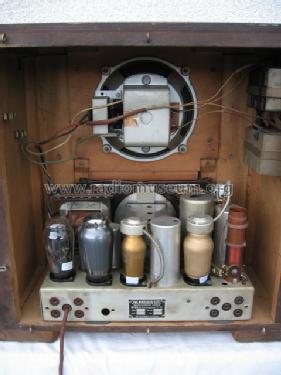

• Model: Luxus-Gross-Super AW47 - Radione RADIO Nikolaus Eltz;

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes

• Abstimmanzeige

• Price in first year of sale
• 498.00 öS

• External source of data
• Die «Thali Schemasammlung» führt das Modell.

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange + Schenk

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
