• Country
• Austria

• Manufacturer / Brand
• Radione (RADIO Nikolaus Eltz); Wien

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 10486

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC170 OC169 OC169 OC71 OC71 OC74 OC74 OA79 OA79

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Dry Batteries / 3R12: 2 x 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

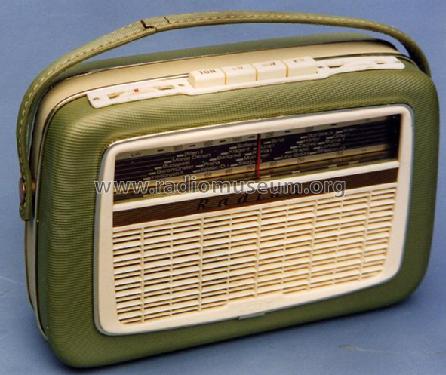

• Model: R22T - Radione RADIO Nikolaus Eltz;

• Shape
• Portable set > 8 inch (also usable without mains)

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb
