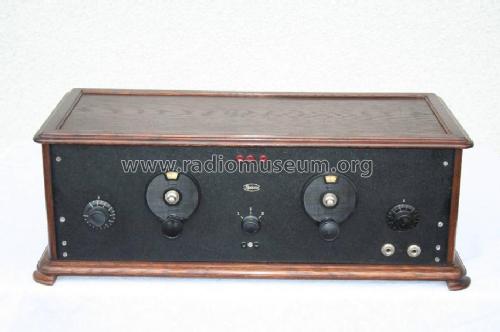

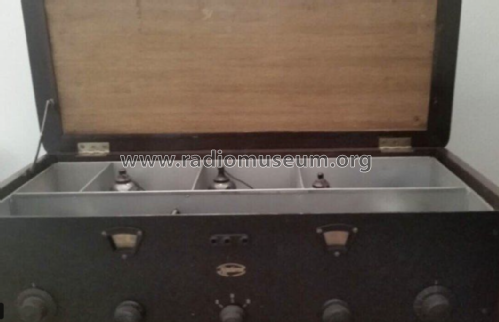

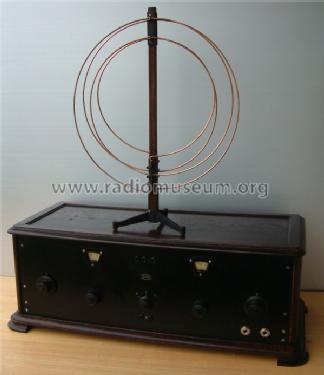

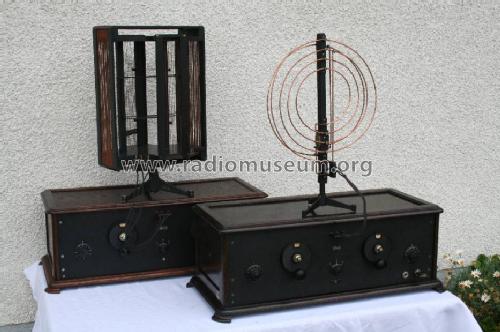

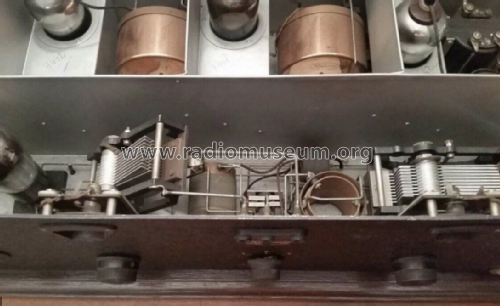

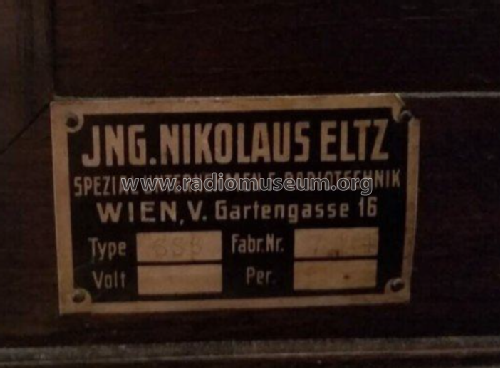

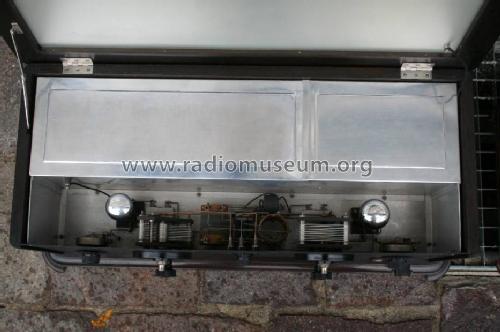

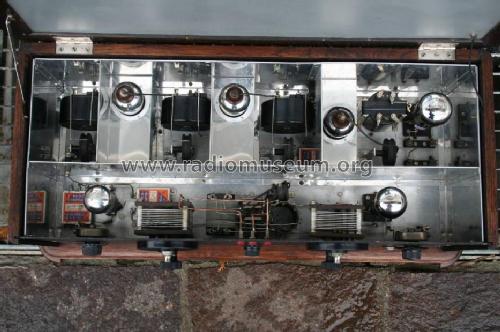

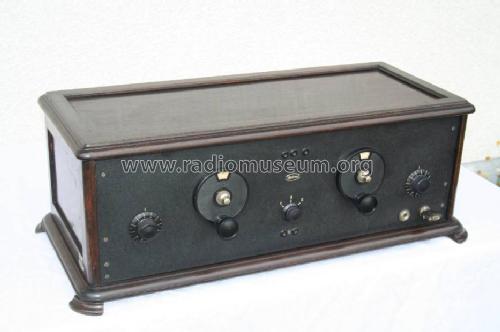

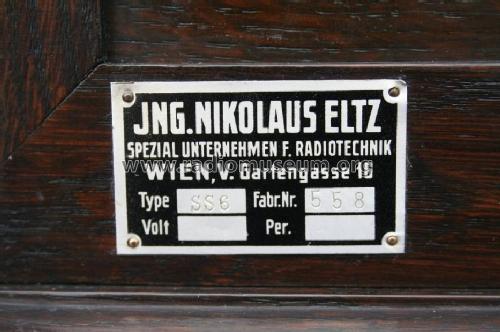

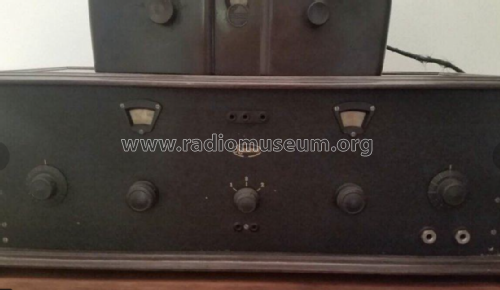

Universal-Empfänger SS6

• Country
• Austria

• Manufacturer / Brand
• Radione (RADIO Nikolaus Eltz); Wien

• Year
• 1928/1929

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 10191

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• A442 A442 A442 A442 B405 B443

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: Universal-Empfänger SS6 - Radione RADIO Nikolaus Eltz;

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 700 x 240 x 320 mm / 27.6 x 9.4 x 12.6 inch

• Notes
• 12-3000m

• Net weight (2.2 lb = 1 kg)
• 11.3 kg / 24 lb 14.2 oz (24.89 lb)

• Price in first year of sale
• 740.00 S

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Walter katalog 1929/30

• Literature/Schematics (1)
• -- Schematic
