• Country
• France

• Manufacturer / Brand

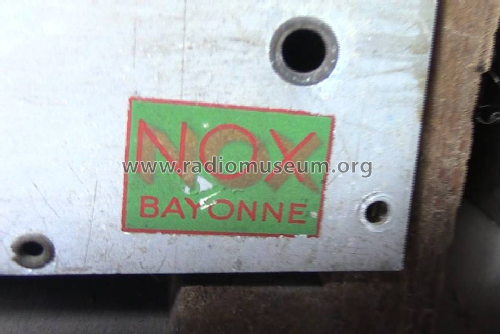

• Radio-Nox (Vox); Bayonne

• Year
• 1940 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 324510

• Number of Tubes
• 7

• Valves / Tubes

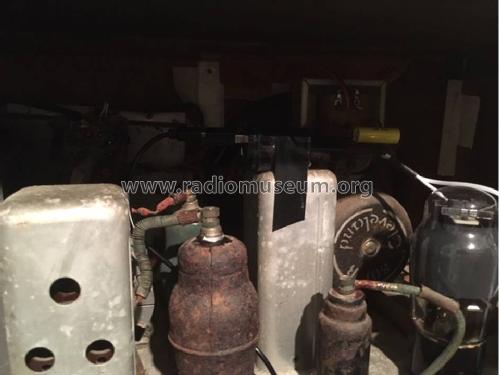

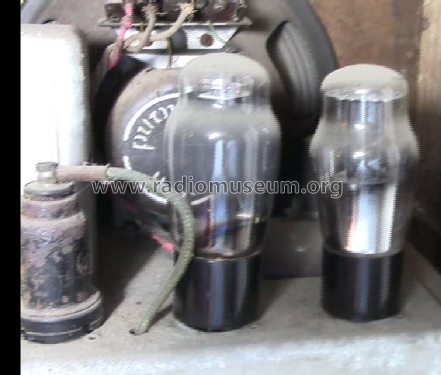

• 6K7 6E8 6K7 6Q7 6AF7 6L6 5Y3

• Main principle
• Superhet with RF-stage; ZF/IF 472 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

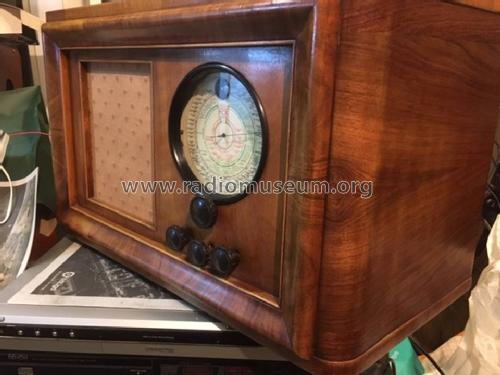

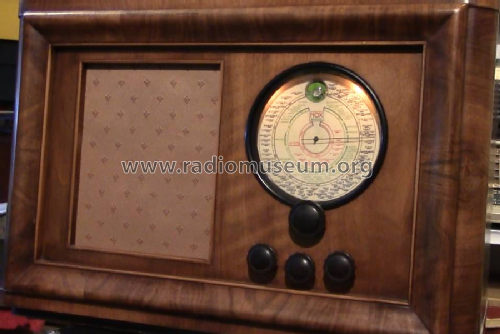

• Model: B696 - Radio-Nox Vox; Bayonne

• Shape
• Tablemodel, low profile (big size).

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Author
• Model page created by Ignacio Baquedano. See "Data change" for further contributors.
