• Country
• France

• Manufacturer / Brand
• Radio-Peugeot; Saint-Étienne, Courbevoie

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 178971

• Number of Tubes
• 5

• Valves / Tubes
• ECH3 EBF2 EL3 1883 EM4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org

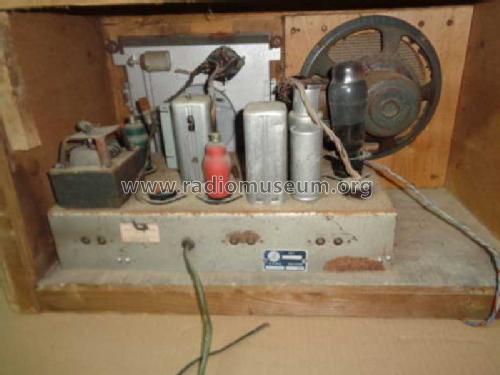

• Model: P546 - Radio-Peugeot; Saint-Étienne,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 620 x 350 x 280 mm / 24.4 x 13.8 x 11 inch

• Notes

• Ce modèle est présenté dans la Musée Peugeot.

• Net weight (2.2 lb = 1 kg)
• 12.5 kg / 27 lb 8.5 oz (27.533 lb)

• Source of data
• -- Original prospect or advert

• Mentioned in
• Radio Technicien Juin-Juillet-Aout 1946

• Literature/Schematics (2)
• Le grand livre de la TSF (Doctsf Ref 28390)

• Author
• Model page created by Eddy Rischmann. See "Data change" for further contributors.
