• Country
• Romania

• Manufacturer / Brand
• Radio Popular; București - Bucharest

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 347313

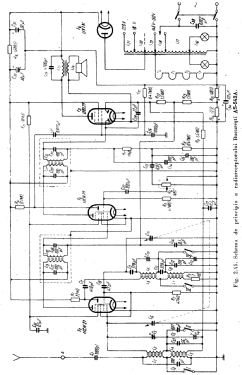

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH21 UCH21 UBL21 UY1N

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 145-150; 185; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Bucuresti S543A - Radio Popular; București -

• Shape
• Tablemodel, with any shape - general.

• Notes

• AC variant of Bucuresti S543U.

• Author
• Model page created by Radu Calin DAN. See "Data change" for further contributors.
