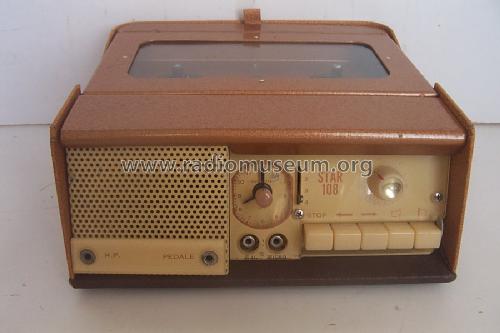

Star 108

Radio-Star; Nice

  • Year
  • 1960
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 219735

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 & 3 x 1.5 f. Uhr Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Star 108 - Radio-Star; Nice
  • Dimensions (WHD)
  • 230 x 100 x 210 mm / 9.1 x 3.9 x 8.3 inch
  • Notes
  • 4 pistes, vitesse 4.75 et 9.5cm/s, diamètre des bobines 10cm, 2 moteurs.
  • Net weight (2.2 lb = 1 kg)
  • 2.6 kg / 5 lb 11.6 oz (5.727 lb)
  • Author
  • Model page created by Christian Berthier. See "Data change" for further contributors.
