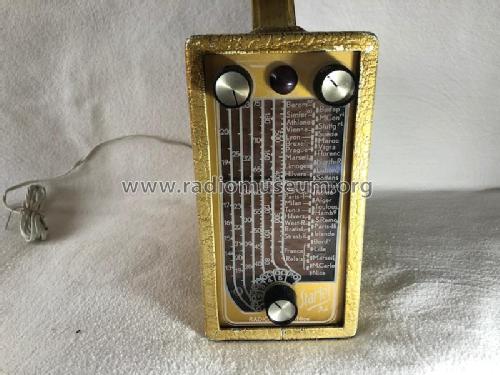

Starlet 34 Européen

Radio-Star; Nice

Data
Forum
Pictures
Collections

  • Year
  • 1950
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 238535

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 472 kHz
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • AC/DC-set / 110 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Starlet 34 [Européen] - Radio-Star; Nice
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 90 x 180 x 210 mm / 3.5 x 7.1 x 8.3 inch
  • Notes

  • Modele européen, 6 gammes d'ondes: PO, GO, OC1, OC2, OC3 et OC4, OCs de 13 à 50 m. Prises antenne-terre, pick-up, HP supplémentaire.

    Le dépliant mentionne 6 lampes pour ce récepteur.

  • Net weight (2.2 lb = 1 kg)
  • 2.9 kg / 6 lb 6.2 oz (6.388 lb)
  • Mentioned in
  • -- Original prospect or advert (Dépliant 1950)
