Airby 700
Radio Test; Paris
- Country
- France
- Manufacturer / Brand
- Radio Test; Paris
- Year
- 1951 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 117635
The front viewed from another angle
The back of the radio, with backplane

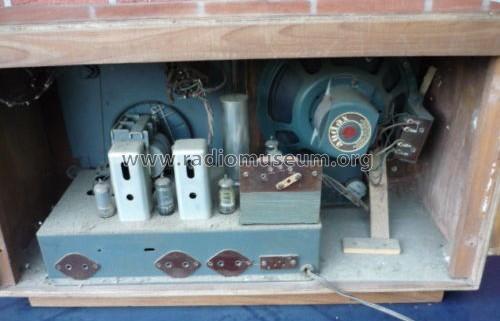

The inside of the radio
by courtesy of the owner
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Airby 700 - Radio Test; Paris
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 620 x 330 x 270 mm / 24.4 x 13 x 10.6 inch
- Notes
-
2 OC dont une bande étalée.
- Author
- Model page created by Leo Snoeren. See "Data change" for further contributors.
