• Country
• France

• Manufacturer / Brand
• Radio Test; Paris

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 68655

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EAF42 EL41 GZ40 EM4

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

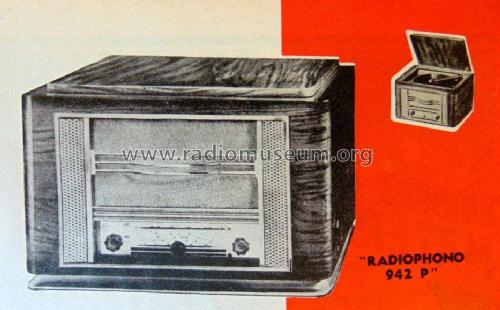

• Model: Menuet 942 - Radio Test; Paris

• Dimensions (WHD)
• 480 x 315 x 360 mm / 18.9 x 12.4 x 14.2 inch

• Notes
• Laufwerk der Marke Perpetuum

• External source of data
• Serge Laffont/Martin Renoth

• Mentioned in
• Pub in Toute La Radio, No 150, Nov. 1950
