• Country
• France

• Manufacturer / Brand
• Radio Test; Paris

• Year
• 1953 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 122419

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 EF85 EBC41 6P9 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org

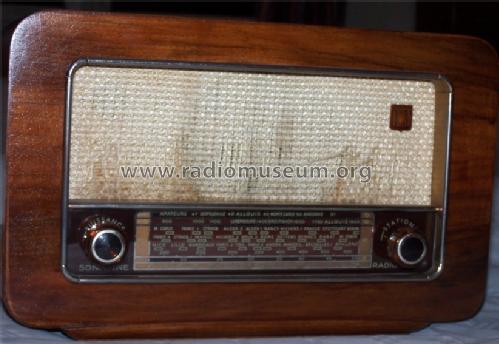

• Model: Sonatine - Radio Test; Paris

• Dimensions (WHD)
• 325 x 150 x 205 mm / 12.8 x 5.9 x 8.1 inch

• Source of data
• Le grand livre de la TSF

• Author
• Model page created by Olivier Decelle. See "Data change" for further contributors.

• Other Models

• Here you find 42 models, 32 with images and 25 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Radio Test; Paris
