Concerto Noval
Radio Voltaire; Paris
- Country
- France
- Manufacturer / Brand
- Radio Voltaire; Paris
- Year
- 1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 122422
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16.5 cm = 6.5 inch
- Material
- Wooden case
- from Radiomuseum.org

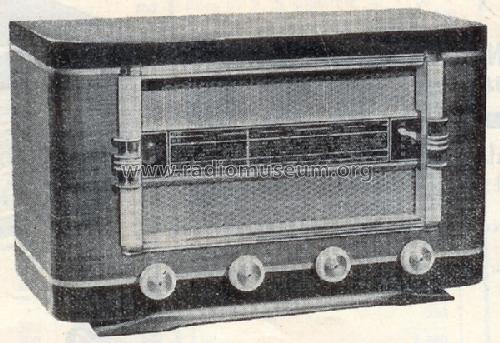

- Model: Concerto Noval - Radio Voltaire; Paris
- Shape
- Tablemodel, low profile (big size).
- Notes
-
4 gammes d'ondes dont 1 bande étalée (BE) sur OC.
Ébénisterie gainé façon cuir, macassar, ou ronce de noyer verni.
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Raynal Aufils. See "Data change" for further contributors.
