• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1951 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 203225

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 12SQ7 50L6GT 35Z5GT

• Main principle
• Audio-Amplification; 2 AF stage(s)

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.77 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

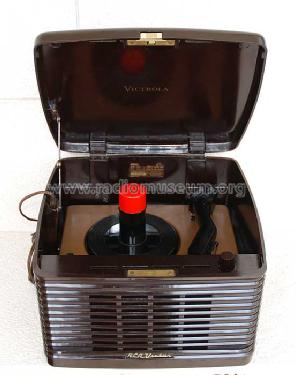

• Model: Victrola 45-EY-3 Ch= RS-136B - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 11.5 x 7.625 x 12.125 inch / 292 x 194 x 308 mm

• Notes
• The RCA Victor model 45-EY-3 is a portable record player (changer) for 45 rpm only. You can stack up to 12 records. It was made with several alterations of the RS-136 chassis as RS-136A, RS-136B and at least also RS-136C. Without suffix, the chassis has only two tubes: 6SQ7 and 25L6-GT and has a special motor for 85 volts, called changer RP-190-3. The motor is in series with the two tubes but in parallel with the 3 tubes. The ones with motor for 115 volts have a changer RP-190-1. Power output undistorted 1.25 watts, max. 1.77 watts. Voice coil impedance 3.2 ohms at 400 cycles, size 4 x 6" (P.M.). Power supply for RS-136 45 watts, for RS-136A etc. 50 watts. We don't know yet the differences between the suffixes.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 11, 1951 (Chassis RS-136B was later - but differences must be minimal.)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
