Pre-Amplifier LMI-32215 A

RCA Great Britain Ltd; Sunbury-on-Thames

Data
Forum
Pictures
Collections

  • Year
  • 1956 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 165819

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Powered by external power supply or a main unit.
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Pre-Amplifier LMI-32215 A - RCA Great Britain Ltd; Sunbury
  • Shape
  • Book-shelf unit.
  • Notes

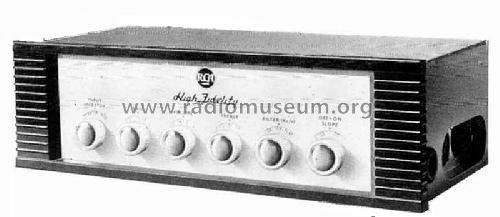

  • A hi-fi mono pre-amplifier which accompanies the RCA LMI-32216 A Power Amplifier. With controls for on/off/slope, high-pass and low-pass filters, volume, treble and bass, inputs for Phono (Old 78s, LP, AES, Orthophonic), Radio, TV, Aux, Tape), output for tape, and a connection for the power amplifier via special cable LMI-32218 A. Mixer facilities for microphone input with radio/tape and phono inputs.

    Similar to the LMI-32215 Pre-Amplifier made by RCA Photophone Ltd.

  • Source of data
  • -- Schematic
  • Mentioned in
  • -- Original prospect or advert (Wireless World September 1956)
