Orthophonic 6-HF-1
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1956 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 223236
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- 6CB6 6J6 6BA6 6AU6 6AU6 6AL5 6AV6 6C4 6AL7 12AU7 6AU6 6AU6 6V6 6V6 6V6 6V6 5U4G 12AX7 12AU7 6E5 6X4 12AU7
- Number of Transistors
- 3
- Semiconductors
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer + Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 20 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Orthophonic 6-HF-1 - RCA RCA Victor Co. Inc.; New
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 36.5 x 43 x 23 inch / 927 x 1092 x 584 mm
- Notes
-

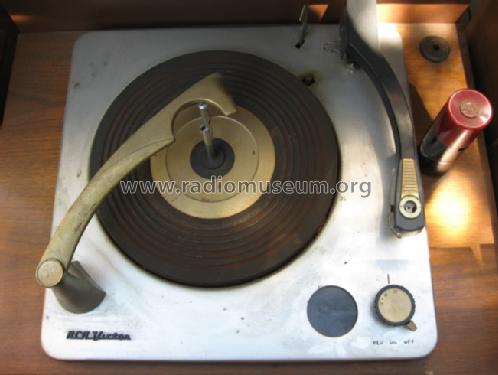

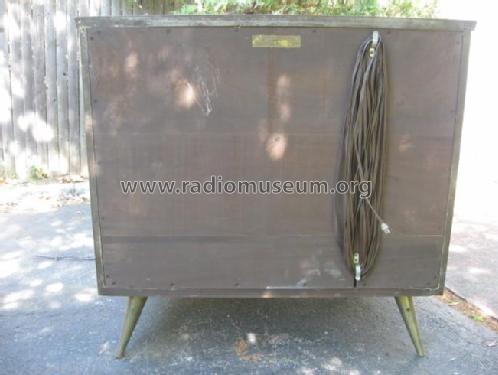

The RCA Model 6-HF-1 was manufactured in 1956. It consisted of a console with separate AM/FM tuner (RS147) and amplifier chassis (RC1154). The tuner contains 9 tubes and the amplifier/power supply contains 8 tubes. Also a record changer (RP-197) and a reel-to-reel tape deck (RCA TR-1) with another 5 tubes.. The tape deck was actually a Magnecord M30 with the RCA brand name. The matching speaker cabinet (RK196) contained 4 speakers: woofer, midrange, and 2 tweeters. The speaker had a 50 foot cord for placement away from the console. Schematic was issued by Howard Sams in 334-8 and by RCA.
The reel-to-reel tape deck also used two 1U1 crystal diodes for signal rectification preceding the Recording Indicator Level and a full wave selenium rectifier to supply DC voltage to the two AF amplifiers.
Both the record changer and reel-to-reel units have separate detailed RCA Service Manuals.
The model 6-HF-2 was a single unit model that contained a AM/FM radio, record changer, and speaker. It did not contain a reel-to-reel tape deck.
- Price in first year of sale
- 1,600.00 US
- Source of data
- -- Original-techn. papers.
- Mentioned in
- -- Original prospect or advert (Life Magazine 1/23/1956 issue.)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (334-8)
- Literature/Schematics (2)
- - - Manufacturers Literature (RCA Service Data - 1955 No. 12)
- Author
- Model page created by Jon Kummer. See "Data change" for further contributors.
