• Country
• France

• Manufacturer / Brand
• RD Radio, Éts. R. Dehay et Cie; Charenton

• Year
• 1936 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106377

• • Brand: Grivox

• Number of Tubes
• 8

• Valves / Tubes
• 6D6 6A7 6D6 6B7 76 6F6G 6F6G 5U4G

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 100-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 23 cm = 9.1 inch

• Material
• Wooden case

• from Radiomuseum.org

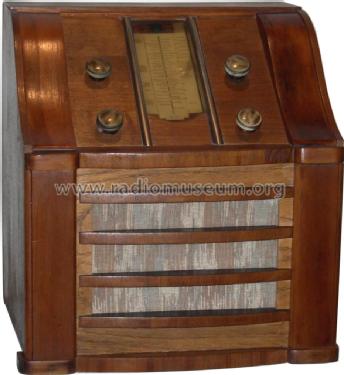

• Model: RD8 - RD Radio, Éts. R. Dehay et Cie

• Shape
• Tablemodel, slant panel.

• Dimensions (WHD)
• 425 x 360 x 470 mm / 16.7 x 14.2 x 18.5 inch

• Notes

• With a tube 5U4G, the model can not be older than from 1936.

• Net weight (2.2 lb = 1 kg)
• 16.5 kg / 36 lb 5.5 oz (36.344 lb)

• Author
• Model page created by Karlheinz Gützlaff. See "Data change" for further contributors.
