• Country
• France

• Manufacturer / Brand
• Recta; Paris

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 122742

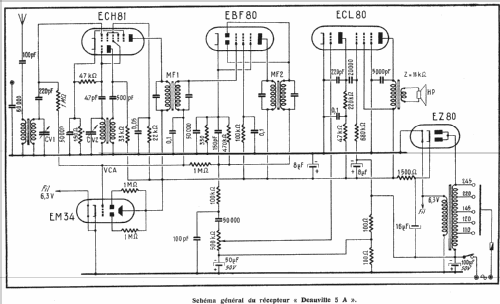

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 EBF80 ECL80 EZ80 EM34

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Deauville 5A - Recta; Paris

• Dimensions (WHD)
• 270 x 200 x 150 mm / 10.6 x 7.9 x 5.9 inch

• Notes

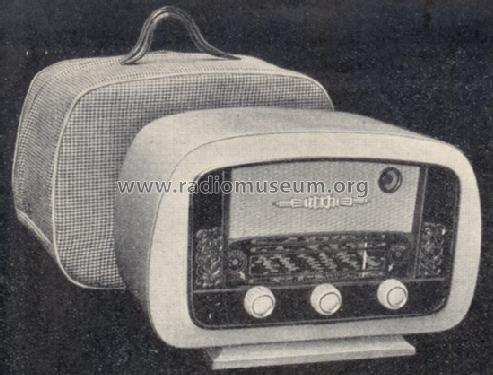

• Ebénisterie Sycomore. Housse de voyage. 2 X OC dont une bande étalée.

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Literature/Schematics (1)
• Radio Constructeur et Dépanneur.

• Author
• Model page created by Raynal Aufils. See "Data change" for further contributors.
