Messager 7 FM
Recta; Paris
- Country
- France
- Manufacturer / Brand
- Recta; Paris
- Year
- 1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 285669
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Messager 7 FM - Recta; Paris
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 540 x 260 x 360 mm / 21.3 x 10.2 x 14.2 inch
- Notes
-
2 haut-parleurs1 H.P. GEGO de 17/27cm, et une cellule électro statique, clavier 6 touches, 2 OC dont une bande étalée, cadre à air rotatif incorporé.

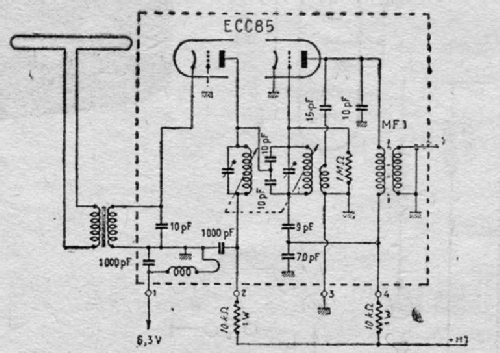

Bloc FM Görler
Modèle proposé en kit, avec le choix d'une platine TD pour un supplément de 11500Ffr.
- Price in first year of sale
- 29,900.00 Ffr
- Mentioned in
- Le Haut-Parleur (N°985 de novembre 1956, pages 43 à 46)
- Author
- Model page created by Jean-Pierre Ambroise. See "Data change" for further contributors.
- Other Models
-
Here you find 94 models, 80 with images and 66 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Recta; Paris
