Puccini 7 HF
Recta; Paris
- Country
- France
- Manufacturer / Brand
- Recta; Paris
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 136067

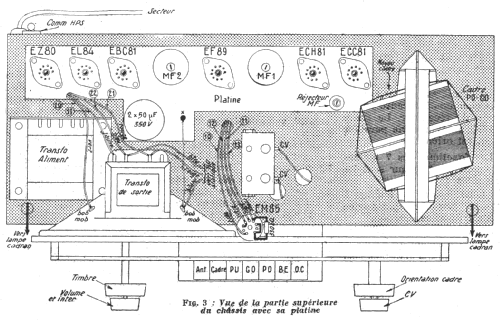

Le Haut Parleur 1958
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 120; 145; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Puccini 7 HF - Recta; Paris
- Dimensions (WHD)
- 450 x 250 x 220 mm / 17.7 x 9.8 x 8.7 inch
- Notes
- 2 x OC dont une bande étalée, cadre à air rotatif, étage amplificateur HF cascode, 1 ou 2 H.P., clavier 7 touches, existe en combiné Radio-Phono type "fauteuil".
- Author
- Model page created by Raynal Aufils. See "Data change" for further contributors.
