• Country
• France

• Manufacturer / Brand
• Recta; Paris

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 151542

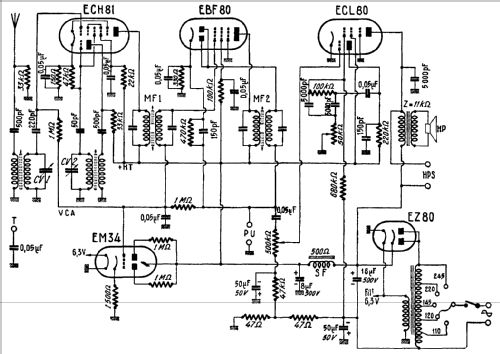

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 EBF80 ECL80 EZ80 EM34

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Verdi 5 - Recta; Paris

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 490 x 290 x 240 mm / 19.3 x 11.4 x 9.4 inch

• Notes
• 2 OC dont une bande étalée, H.P de 17 ou 21cm.

• Literature/Schematics (1)
• Le Haut Parleur 1954

• Author
• Model page created by Raynal Aufils. See "Data change" for further contributors.
