• Country
• France

• Manufacturer / Brand
• Recta; Paris

• Year
• 1951

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 132791

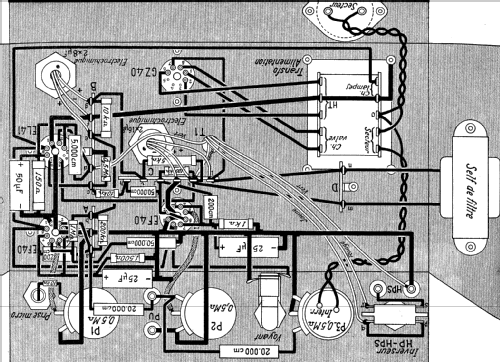

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EF40 EF40 EL41 GZ40

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 4.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Virtuose 4 - Recta; Paris

• Dimensions (WHD)
• 480 x 270 x 230 mm / 18.9 x 10.6 x 9.1 inch

• Notes
• Mallette gainé lézard,luxe,avec poignée cuir et fermeture et coins cuivre chromé, H.P. 16/24 cm Audax

• Author
• Model page created by Raynal Aufils. See "Data change" for further contributors.
