Wagner Band-Spread PP 10
Recta; Paris
- Country
- France
- Manufacturer / Brand
- Recta; Paris
- Year
- 1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 130943
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 24 cm = 9.4 inch
- Power out
- 12 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

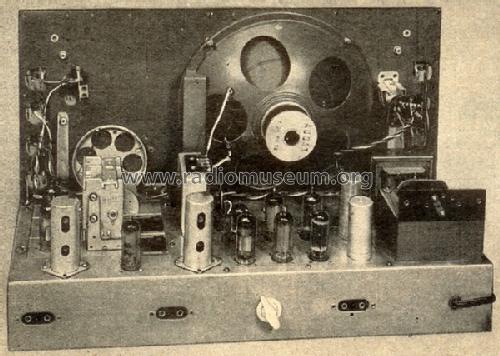

- Model: Wagner Band-Spread PP 10 - Recta; Paris
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 530 x 320 x 270 mm / 20.9 x 12.6 x 10.6 inch
- Notes
- 8 X OC dont 7 bandes étalées,push-pull final de 6BS5, ébénisteries Royal noyer foncé luxe ou ébénisterie Ceinture EP (500 x 330 x 230 mm) noyer luxe, existe en combiné Radio-Phono.
- Literature/Schematics (1)
- Radio Constructeur et Dépanneur 1953
- Author
- Model page created by Raynal Aufils. See "Data change" for further contributors.
