• Country
• France

• Manufacturer / Brand
• Reela-Radio, Reela-Gees; Paris

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 236260

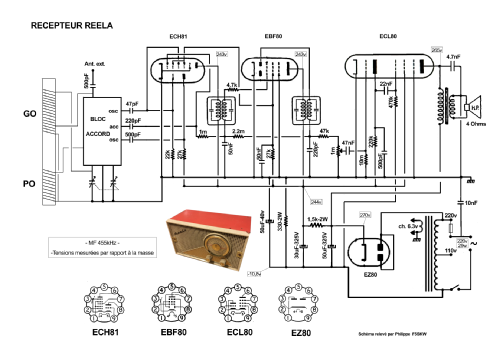

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH81 EBF89 ECL80 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Inconnu - Unknown 13 - Reela-Radio, Reela-Gees; Paris

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 260 x 155 x 130 mm / 10.2 x 6.1 x 5.1 inch

• Notes

• Spartrafo.

• Author
• Model page created by Christian Enzesberger. See "Data change" for further contributors.

• Other Models

• Here you find 160 models, 145 with images and 21 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
