• Country
• France

• Manufacturer / Brand
• Reela-Radio, Reela-Gees; Paris

• Year
• 1973/1974

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 281844

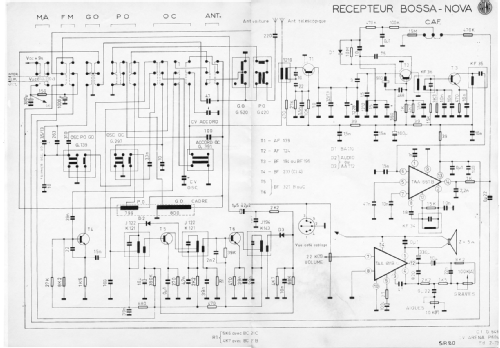

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• AF129 AF124 BF195 BF233 BF321 BF321 AC128 TAA661 TAA611

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / AC: 220 / R20: 6 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (undistorted)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Bossa Nova - Reela-Radio, Reela-Gees; Paris

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 225 x 245 x 103 mm / 8.9 x 9.6 x 4.1 inch

• Notes

• 4 gammes d'ondes dont FM de 87 à 108 MHz. Correction de tonalité graves / aigües séparée. Antenne télescopique pour OC et FM, cadre ferrite pour PO et GO. HP Musicalpha de 12 x 19 cm. 3 prises : DIN 5 broches, antenne voiture, HP extérieur.

  2 circuits intégrés : TAA661 en HF et TAA611 en BF.

  Coffret bois gainé simili-cuir noir, façade matière plastique. Cadran bilingual français / anglais.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Author
• Model page created by Vincent Baccialone. See "Data change" for further contributors.
