- Country
- France
- Manufacturer / Brand
- Reela-Radio, Reela-Gees; Paris
- Year
- 1953/1954
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 250414
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Dry Batteries / 2 x 1,5 & 67,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

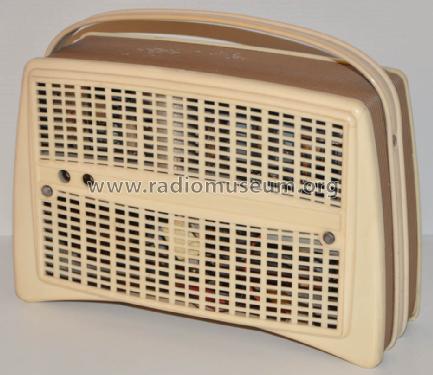

- Model: Domino - Reela-Radio, Reela-Gees; Paris
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 280 x 190 x 90 mm / 11 x 7.5 x 3.5 inch
- Notes
-
Cadre ferroxcube.
Coloris rouge, bordeaux et vert.
- Net weight (2.2 lb = 1 kg)
- 2.5 kg / 5 lb 8.1 oz (5.507 lb)
- Mentioned in
- Le grand Livre (3), Bourque 2002
- Literature/Schematics (1)
- -- Original prospect or advert (Créations 54)
- Author
- Model page created by Marc Couque. See "Data change" for further contributors.
