• Country
• France

• Manufacturer / Brand
• Reela-Radio, Reela-Gees; Paris

• Year
• 1964/1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 208971

• Number of Transistors
• 7

• Semiconductors
• AF117 AF117 AF117 PR3_Thomson PR3_Thomson NR4_Thomson PR4_Thomson

• Main principle
• Superheterodyne (common); 4 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.6 cm = 2.6 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

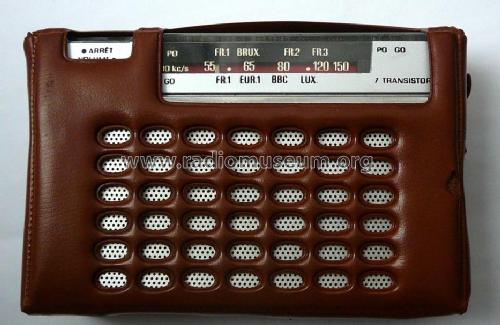

• Model: Pocket 64 7 transistors - Reela-Radio, Reela-Gees; Paris

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 128 x 82 x 36 mm / 5 x 3.2 x 1.4 inch

• Notes

• Existe sous la marque Rools. Fabriqué aussi pour Manufrance sous la ref. 32-9807.

• Net weight (2.2 lb = 1 kg)
• 0.290 kg / 0 lb 10.2 oz (0.639 lb)

• Price in first year of sale
• 120.00 FRF

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Olivier Palix. See "Data change" for further contributors.

• Other Models

• Here you find 160 models, 145 with images and 21 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Reela-Radio, Reela-Gees; Paris
