• Country
• France

• Manufacturer / Brand
• Reela-Radio, Reela-Gees; Paris

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 71067

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC171 OC45 OC45 OC70 OC71 OC72 OC72 OA74 OA74

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

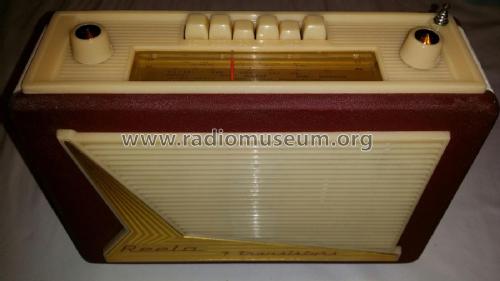

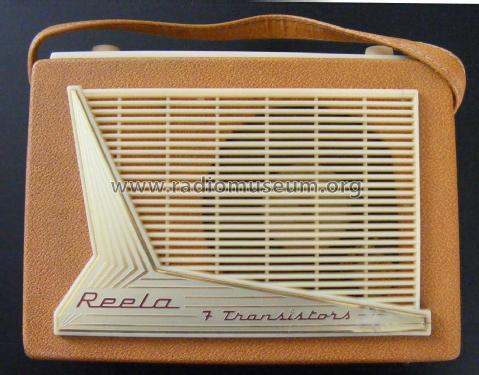

• Model: Présence 7 Transistors - Reela-Radio, Reela-Gees; Paris

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 260 x 180 x 80 mm / 10.2 x 7.1 x 3.1 inch

• Notes

• 4 gammes d'ondes: PO, GO, OC1 16 - 30 m, OC2 29 - 50 m. Antenne télescopique 920 mm, cadre ferrite 200 mm. Clavier 6 touches. Prise antenne auto commutable (bobinages d'accord séparés).

  7 transistors dont 1 drift (OC171 ou analogue), 2 diodes.

  Coffret bois gainé matière plastique, coloris divers.

• Price in first year of sale
• 245.00 FRF

• External source of data
• Serge Laffont/Martin Renoth

• Mentioned in
• Radio Constructeur et Dépanneur Oct. 1960

• Literature/Schematics (1)
• Le grand livre de la TSF (Doctsf Ref 24258)

• Literature/Schematics (2)
• -- Original prospect or advert

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
