• Country
• Germany

• Manufacturer / Brand
• Reitz, Ing. Herbert; Radis (Ostd.)

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26849

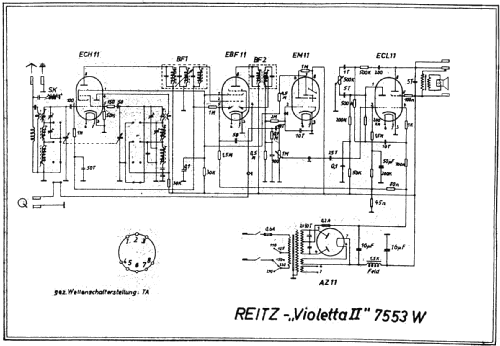

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH11 EBF11 ECL11 EM11 or 6E5_DDR AZ11

• Main principle

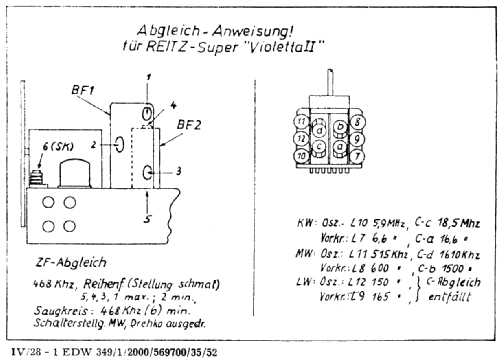

• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage

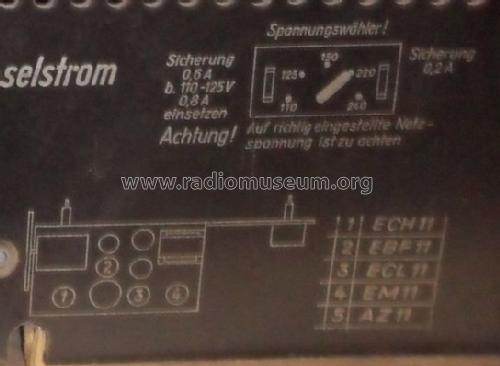

• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Violetta II 7553 W - Reitz, Ing. Herbert; Radis

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 555 x 400 x 285 mm / 21.9 x 15.7 x 11.2 inch

• Notes

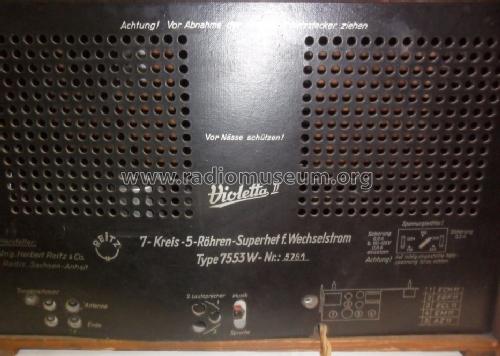

• Poliertes Edelholzgehäuse mit Intarsien, Anschlüsse für Zweitlautsprecher und TA.

• Net weight (2.2 lb = 1 kg)
• 10.5 kg / 23 lb 2 oz (23.128 lb)

• Price in first year of sale
• 358.00 DM

• Source of data
• Gebrauchswaren-Katalog 1954 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• Jahresübersicht Radio und Fernsehen 1955

• Author
• Model page created by Steffen Bartusch. See "Data change" for further contributors.
