- Country
- France
- Manufacturer / Brand
- AMO (A.M.O), Renard et Moiroux; Le Perreux (Seine)
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 62675
-
- Brand: AMO (A.M.O.)
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 472 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 120; 130; 150; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
- Power out
- 4.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: E62 [6E8G] - AMO A.M.O, Renard et Moiroux;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 570 x 320 x 300 mm / 22.4 x 12.6 x 11.8 inch
- Notes
-
3 gammes d'ondes : OC de 18.5 à 53 m, PO de 197 à 563 m, GO de 750 à 2000 m. Anti-fading agissant sur lampes MF et changeuse de fréquence. Réglage de tonalité progressif. Lampes cadran : 2 x 7 V / 0.3 A.
Ébénisterie noyer verni, décor métallique.
Ce modèle peut être équipe d'une lampe 6TH8 au lieu de 6E8, voir E62.
- Net weight (2.2 lb = 1 kg)
- 18 kg / 39 lb 10.4 oz (39.648 lb)
- Price in first year of sale
- 150.00 FRF
- External source of data
- Serge Laffont/Martin Renoth

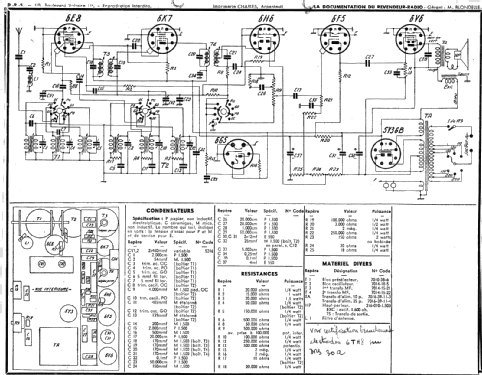

- Circuit diagram reference
- La Documentation du Revendeur - Radio
- Mentioned in
- Schémathèque Toute la Radio (STR) (No. 375)
- Literature/Schematics (1)
- -- Original prospect or advert (Gamme 1939)
