K52

AMO (A.M.O), Renard et Moiroux; Le Perreux (Seine)

Data
Forum
Pictures
Collections

  • Year
  • 1938/1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 100027
    • Brand: AMO (A.M.O.)

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 472 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 120; 130; 150; 220; 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
  • Power out
  • 4.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

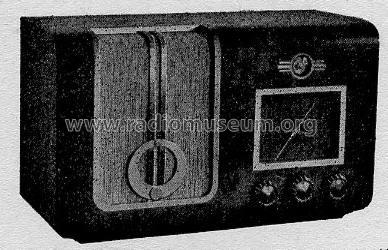

  • Model: K52 - AMO A.M.O, Renard et Moiroux;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 520 x 310 x 270 mm / 20.5 x 12.2 x 10.6 inch
  • Notes

  • 3 gammes d'ondes : OC 18.5 à 53 m, PO 197 à 563 m, et GO de 750 à 2000 m. Anti-fading. Prise pick-up commutée (à débrancher pour les auditions radio). Lampes cadran : 2 x 7 V / 0.3 A.

    Existe comme modèle spécial pour 25 périodes.

  • Net weight (2.2 lb = 1 kg)
  • 12 kg / 26 lb 6.9 oz (26.432 lb)
  • Circuit diagram reference
  • La Documentation du Revendeur - Radio
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
