• Country
• France

• Manufacturer / Brand
• Radio-Contrôle; Lyon

• Year
• 1952 ??

• Category
• Antenna (Aerial) or Coupler

• Radiomuseum.org ID
• 76564

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• EF93

• Main principle
• RF-Circuit or wave trap (separate, can also be an antenna with amp.)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Powered by external power supply or a main unit. / AC 6,3 & DC 250 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite case

• from Radiomuseum.org

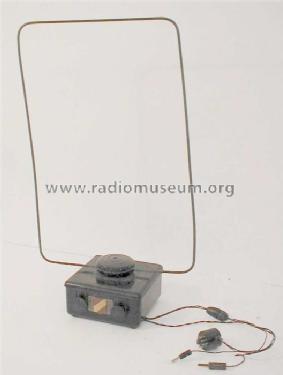

• Model: Rex Cadre Antenne P2 - Radio-Contrôle; Lyon

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 160 x 600 x 160 mm / 6.3 x 23.6 x 6.3 inch

• Notes

• Amplificateur d'antenne 3 gammes + adaptateur intercalaire pour alimentation par le poste.

  Antennenverstärker 3 Wellenbereiche, mit Röhren-Adapterkabel für die Stromversorgung durch das Radio.

• Author
• Model page created by Patrice Zeissloff. See "Data change" for further contributors.
