- Country
- France
- Manufacturer / Brand
- Ribet et Desjardins (R-D); Paris, Montrouge - voir aussi Unic
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 206431
- Number of Tubes

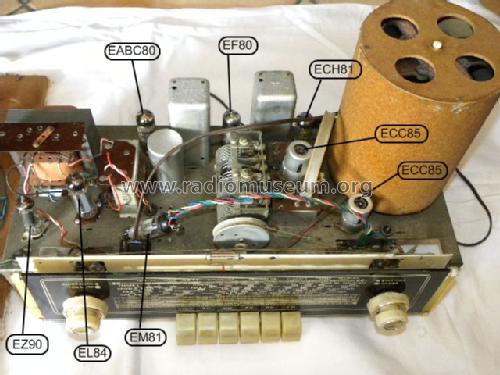

- 8
- Main principle
- Superheterodyne (common); ZF/IF 485/10700 kHz

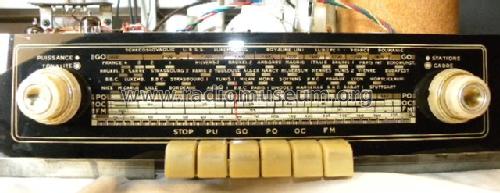

- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

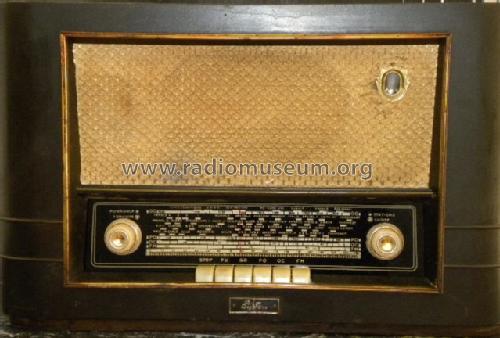

- Model: 1514 - Ribet et Desjardins R-D; Paris
- Shape
- Tablemodel with Push Buttons.
- Notes
-

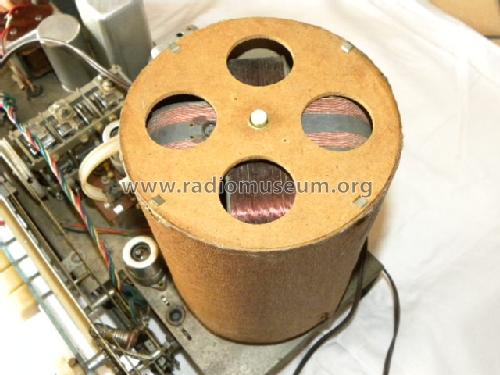

Cadre à air blindé incorporé orientable. 2 HP : 1 elliptique et 1 tweeter. Prises HP supplémentaire, antenne OC et FM, pick-up.
- Author
- Model page created by Carlo La Perna. See "Data change" for further contributors.
