Stereo Cassette Deck RS-5800

Roadstar; Japan

Data
Forum
Pictures
Collections

  • Year
  • 1978
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 270752
    • Brand: Roadstar El. GmbH

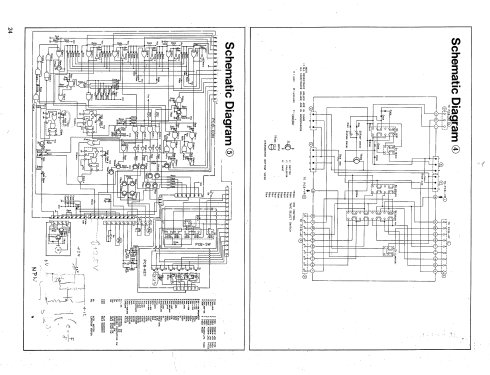

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Cassette Deck RS-5800 - Roadstar; Japan
  • Shape
  • Book-shelf unit.
  • Notes

  • Specifications

    • Type: 2-head, single compact cassette deck
    • Track System: 4-track, 2-channel stereo
    • Tape Speed: 4.76 cm/s
    • Heads: 1 x record/playback, 1 x erase
    • Motor: 1 x reel, 1 x capstan
    • Tape Type: type I, FeCr, CrO2
    • Noise Reduction: B

    Similar Cassette Recorder: Tungsram CDF-4000.

  • Net weight (2.2 lb = 1 kg)
  • 11 kg / 24 lb 3.7 oz (24.229 lb)
  • Source of data
  • -- Schematic
  • Mentioned in
  • - - Manufacturers Literature (Service Manual)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
