• Country
• Germany

• Manufacturer / Brand
• Rohde & Schwarz, PTE; München

• Year
• 1955 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 141383

• • alternative name: Messgerätebau Memmingen || Physikalisch-Technisches Entwicklungslabor Dr. Rohde & Dr. Schwarz

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• ECH81 EAA91 STV85/10

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

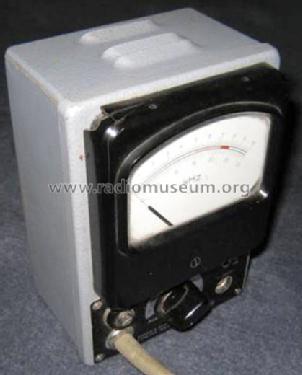

• Model: Frequenzzeiger FTK - Rohde & Schwarz, PTE; München

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 120 x 180 x 90 mm / 4.7 x 7.1 x 3.5 inch

• Notes
• Rohde & Schwarz Frequenzzeiger FTK BN 4700.
  Frequenzbereich 10 Hz...30 kHz in 6 Bereichen. Eingangsspannung 1...250 V. Ablesung der Frequenz auf großem Drehspulinstrument.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Bernhard Nagel. See "Data change" for further contributors.
