Ultima 348GW UCH4
Rökk Radio Wien, VI. Getreidemarkt 1
- Country
- Austria
- Manufacturer / Brand
- Rökk Radio Wien, VI. Getreidemarkt 1
- Year
- 1947/1948 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 80760
Rökk Type Ultima 348GW (UCH4)

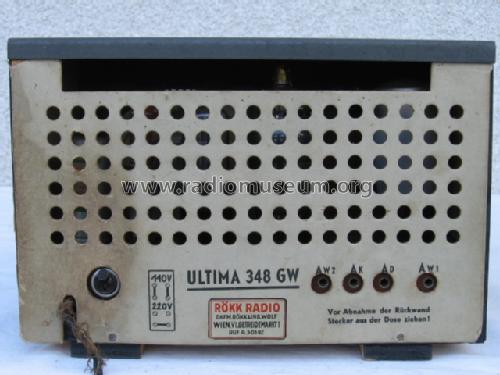

Rökk Ultima 348GW (Rckansicht)

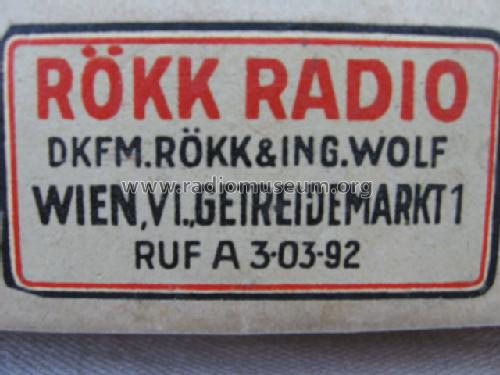

Rökk Ultima 348GW (Firmenschild)

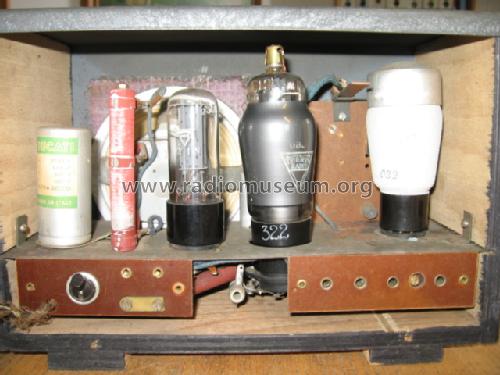

Rökk Ultima 348GW (Innenansicht-UCH4)
- Number of Tubes
- 3
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110-220 Volt
- Material
- Metal case
- from Radiomuseum.org
- Model: Ultima 348GW [UCH4] - Rökk Radio Wien, VI.
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 270 x 180 x 135 mm / 10.6 x 7.1 x 5.3 inch
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Author
- Model page created by Alois Steiner. See "Data change" for further contributors.
- Other Models
-
Here you find 2 models, 2 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Rökk Radio Wien, VI. Getreidemarkt 1
