• Country
• France

• Manufacturer / Brand
• RTA (R.T.A.); Le Pré-Saint-Gervais

• Year
• 1951 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 76396

• Number of Tubes
• 6

• Valves / Tubes
• 6AQ5 6AT6 6BA6 ECH42 6AF7 6X4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org
• Model: DS612 - RTA R.T.A.; Le Pré-Saint-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 540 x 290 x 240 mm / 21.3 x 11.4 x 9.4 inch

• Notes

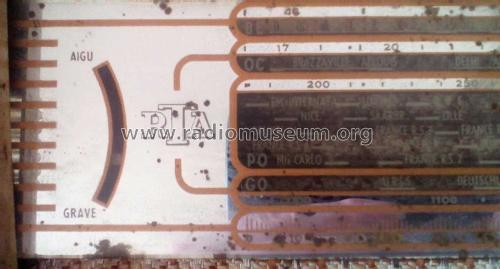

• 2 OC dont 1 bande étalée (BE). Cadran miroir.

• Author
• Model page created by Manfred Kröll † 2.9.2013. See "Data change" for further contributors.

• Other Models

• Here you find 36 models, 21 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from RTA (R.T.A.); Le Pré-Saint-Gervais
