300 Automatic 300-9C

SABA; Villingen

Data
Forum
Pictures
Collections

  • Year
  • 1959/1960
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 133972
    • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz
  • Tuned circuits
  • 9 AM circuit(s)     12 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles 110; 125; 150; 220 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 300 Automatic 300-9C - SABA; Villingen
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes

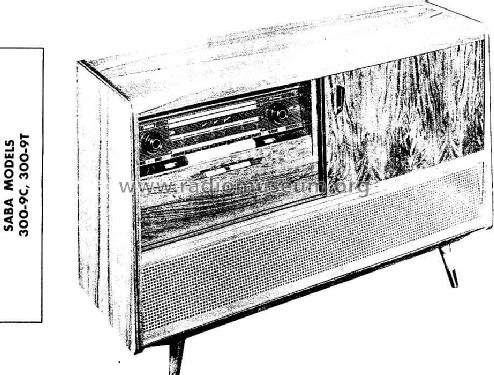

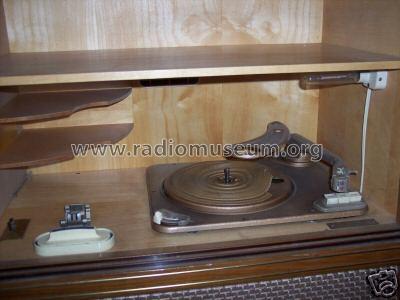

  • The SABA 300 Automatic 9T and 300 Automatic 9C are typical export models. C stands tor "console" and T for "table" model. The Automatic 300 9 has the same chassis as the Meersburg-Automatic 9 and is an AC operated 9 tube FM-BC-SW-LW receiver, the model 9C with 4 speed automatic record changer. One might think the models have 4 speakers - but you see on the photo for the inside that it is three speakers whith soundcompressor. Longwave is from 140 to 360 kc, Short wave from 5.9 to 18.9 mc, Broadcast from 510 to 1640 mc and FM from 88 to 108 mc.

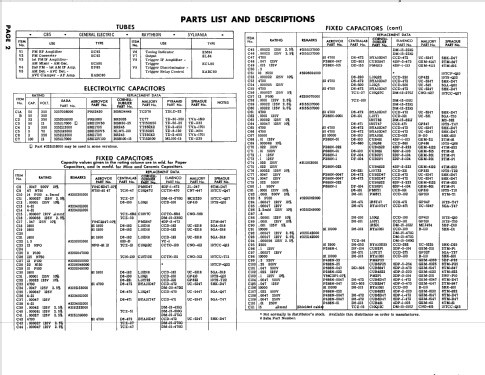

    Both cabinets are the same but the dial glass is different, also the FM wave band etc. SAMS Photofact set #471, Folder 14 Date 1-60 is provided by member Dale Steel. The Importer was A. E. Dufenhorst Co., 121 N. Third Street, Rockford, Illinois..
    Abgleich (auch Steuerfilter)
    Alignment (also automatic filter)
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
