• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1946–1949 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6621

• • Brand: Schwer & Söhne, GmbH

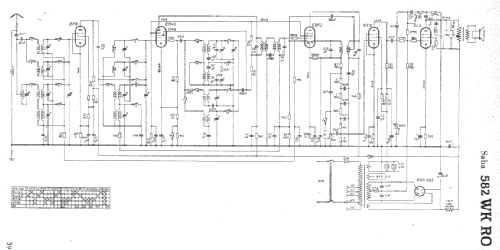

Click on the schematic thumbnail to request the schematic as a free document.

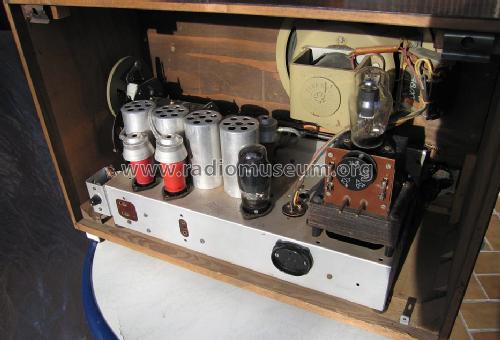

• Number of Tubes
• 6

• Valves / Tubes
• EF9 ECH3 EBF2 EF9 EL3N 1883

• Main principle
• Superhet with RF-stage; ZF/IF 487 kHz

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 582 WK-RO [Skala französisch-englisch] - SABA; Villingen

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 580 x 386 x 290 mm / 22.8 x 15.2 x 11.4 inch

• Notes

• Bandbreite regelbar. Wellenbereichsanzeige auf Skala französisch / englisch überschrieben.

  Reparationsfertigung für die damalige französische Besatzungsmacht.

• Net weight (2.2 lb = 1 kg)
• 17.5 kg / 38 lb 8.7 oz (38.546 lb)

• Price in first year of sale
• 695.00 RM

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + Schenk Nr. 30 von 1948
