• Country
• France

• Manufacturer / Brand
• Samas (Dictone); Paris

• Year
• 1950

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 170147

• Number of Tubes
• 3

• Valves / Tubes
• UAF42 UF41 UL41

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Wire Recorder (or -Player)

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

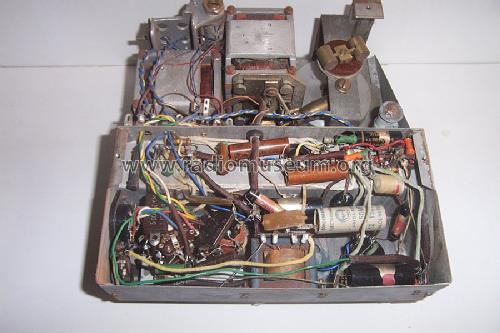

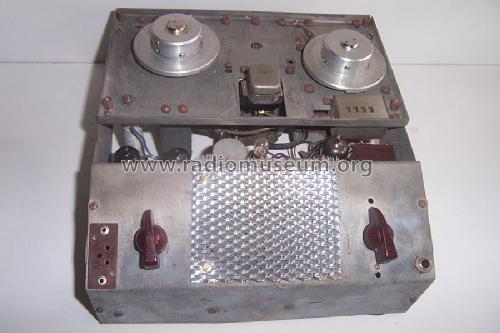

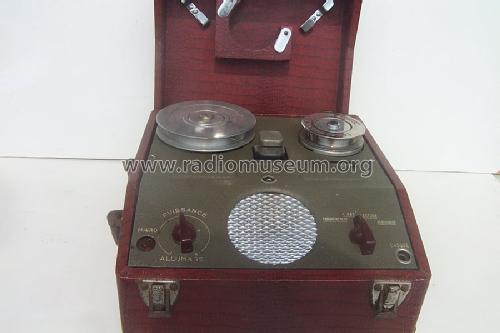

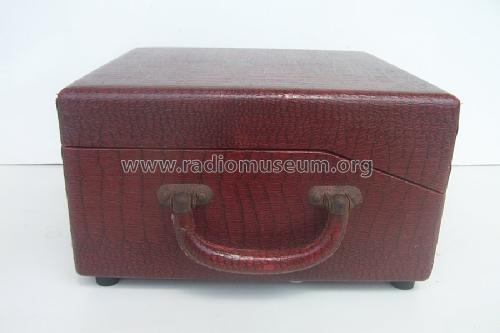

• Model: Dico 728 Série 4 - Samas Dictone; Paris

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 270 x 270 x 150 mm / 10.6 x 10.6 x 5.9 inch

• Notes
• utilisé pour la dictée du courrier, prise casque, pédale de télécommande

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Price in first year of sale
• 115,000.00 FRF

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.

• Other Models

• Here you find 3 models, 2 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Samas (Dictone); Paris
