Super Ondolina 542A

SBR Société Belge Radio-Electrique, Bruxelles

Data
Forum
Pictures
Collections

  • Year
  • 1941/1942
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 197935

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 484 kHz
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 140; 220; 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

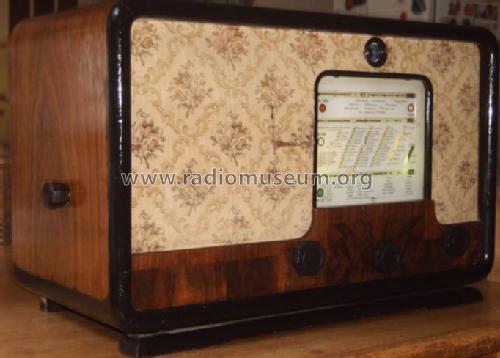

  • Model: Super Ondolina 542A - SBR Société Belge Radio-
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 560 x 360 x 270 mm / 22 x 14.2 x 10.6 inch
  • Notes
  • Features of the SBR 542 A: The dial light (scale illumination) changes depending on the selected wavelenght. When broadcast band is selected, only that part of the scale is illuminated, the same for short wave, long wave and if the selector is in the pick-up position only the pink dot "phono" on the scale is lit. Tone control is on left side of the cabinet. The SBR542A was a rather expensive radio; special features for that era, large cabinet, tone control, luxurious finish.
  • Net weight (2.2 lb = 1 kg)
  • 12.9 kg / 28 lb 6.6 oz (28.414 lb)
  • External source of data
  • Guest Patrick Marinus, Antwerp, Belgium
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
