Emeraude (Emerald) mag. eye
Scarabee - Edouard Binard, Bruxelles
- País
- Bélgica
- Fabricante / Marca
- Scarabee - Edouard Binard, Bruxelles
- Año
- 1939
- Categoría
- Radio - o Sintonizador pasado WW2
- Radiomuseum.org ID
- 113424
- Numero de valvulas
- 7
- Principio principal
- Superheterodino en general
- Gama de ondas
- OM, OL y OC
- Tensión de funcionamiento
- Red: Corriente alterna (CA, Inglés = AC) / 100-250 Volt
- Altavoz
- Altavoz electrodinámico (bobina de campo) / Ø 25 cm = 9.8 inch
- Material
- Madera
- de Radiomuseum.org
- Modelo: Emeraude [mag. eye] - Scarabee - Edouard Binard,
- Forma
- Sobremesa alto de forma simple.
- Ancho, altura, profundidad
- 565 x 585 x 320 mm / 22.2 x 23 x 12.6 inch
- Anotaciones
-
This radio was also available for universal power supply with other tubes, and - instead of a 6E5 tuning eye - with a galvanometer.
- Precio durante el primer año
- 2,950.00 BEF
- Procedencia de los datos
- Manuel de la Radio 1940, van Cortenberghe
- Autor
- Modelo creado por Georges Van Campenhout † 28.4.22. Ver en "Modificar Ficha" los participantes posteriores.
- Otros modelos
-
Donde encontrará 14 modelos, 13 con imágenes y 1 con esquemas.
Ir al listado general de Scarabee - Edouard Binard, Bruxelles
Colecciones
El modelo Emeraude (Emerald) es parte de las colecciones de los siguientes miembros.
Contribuciones en el Foro acerca de este modelo: Scarabee - Edouard: Emeraude
Hilos: 1 | Mensajes: 1
A guest has sent us pictures of his set - and this text, which is surely interesting for collectors of Emeraude or Emerald models. We will try to separate different versions by having different model pages.
Please send us information if you have the same model. You can use the bottom link "Contact".
The text I received:
Thanks for your friendly mail. I add some other images of the same series, but this time not raw and in enhanced jpeg-format. If you want, I can take a new set of pictures.

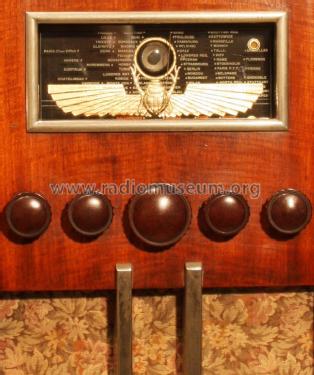

The “ Emeraude” model of the Scarabee Series by Eduard Binard is a fine example of the Egyptian Revival (Egyptomania) at the end of the Art Deco period. The Scarabee Emeraude or Emerald Scarab bug was considered a holy insect and very important in the cult of the ancient Egyptians. The designer of this model cleverly depicted the Scarab bug in the tuning screen with his golden wings fully erected and between its front paws the orb of the sun (in reality the front of one of the tube’s that lights up vivid green when hot) Normally, when you move the knob for tuning the different stations, you get a full green light circle when reception of the station is at its best; when the signal is not clear the circle is only partly filled.
I will keep you posted as soon as I hear from Georges.
Best regards,
Marc Veldeman, Belgium
Ernst Erb, 15.Nov.12
