SP4 ECH42
Sphinxo-Radio, Éts. Schaerer; Paris
- Country
- France
- Manufacturer / Brand
- Sphinxo-Radio, Éts. Schaerer; Paris
- Year
- 1951 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 110666

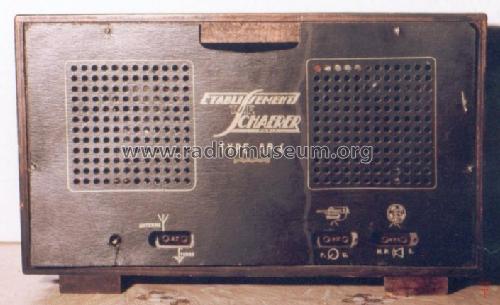

Collection Frédéric Fausel
Collection Frédéric Fausel
Collection Frédéric Fausel
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 220; 245 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Wooden case
- from Radiomuseum.org
- Model: SP4 [ECH42] - Sphinxo-Radio, Éts. Schaerer;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 465 x 275 x 230 mm / 18.3 x 10.8 x 9.1 inch
- Notes
-
This might be a later variant of model SP4 with ECH42 since the tube GZ41 is from 1951 - or it had another tube.
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Patrice Zeissloff. See "Data change" for further contributors.
