Weltsuper Luxus WS 40W
Schaub und Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- Schaub und Schaub-Lorenz
- Year
- 1939/1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 6109

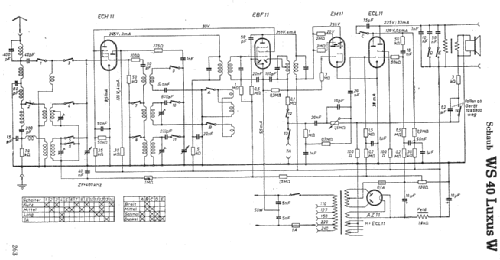

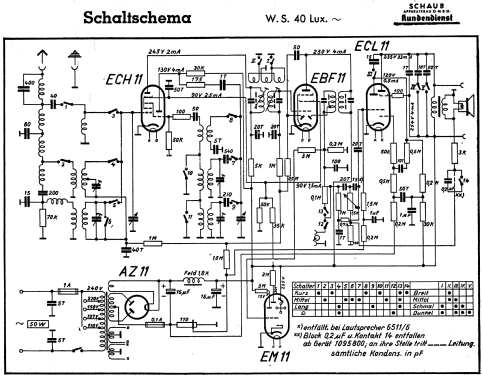

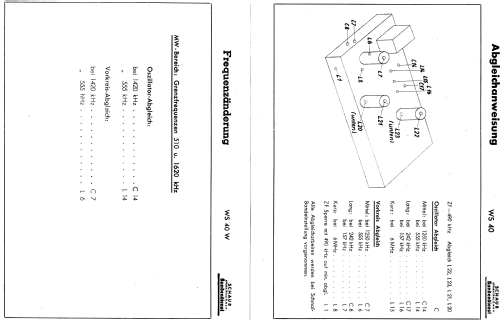

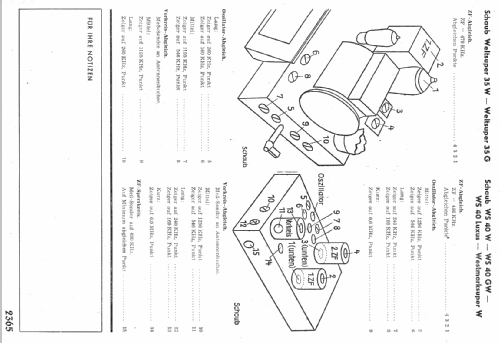

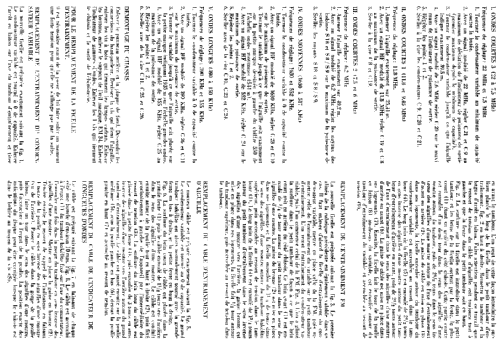

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 490 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

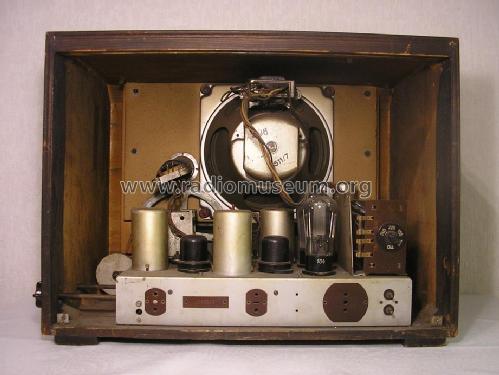

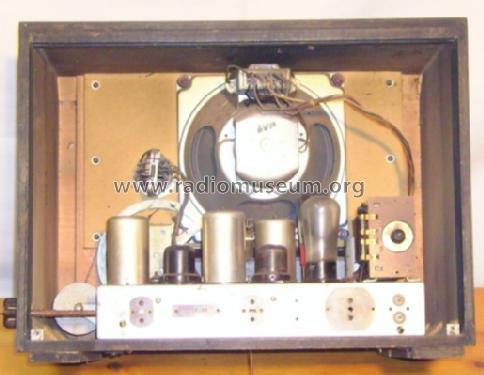

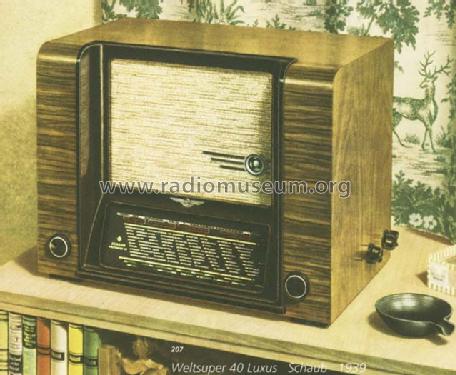

- Model: Weltsuper Luxus WS 40W - Schaub und Schaub-Lorenz
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 500 x 370 x 300 mm / 19.7 x 14.6 x 11.8 inch
- Notes
-
Variable Bandbreite.
Siehe auch Version ohne magisches Auge Weltsuper WS 40 W.
- Net weight (2.2 lb = 1 kg)
- 14.5 kg / 31 lb 15 oz (31.938 lb)
- Price in first year of sale
- 217.00 RM
- Source of data
- Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
- Other Models
-
Here you find 972 models, 831 with images and 690 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Schaub und Schaub-Lorenz
Collections
The model Weltsuper Luxus is part of the collections of the following members.
Forum contributions about this model: Schaub und Schaub-: Weltsuper Luxus WS 40W
Threads: 1 | Posts: 6
