• Country
• France

• Manufacturer / Brand
• Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine

• Year
• 1968

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 112029

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 25

• Valves / Tubes

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

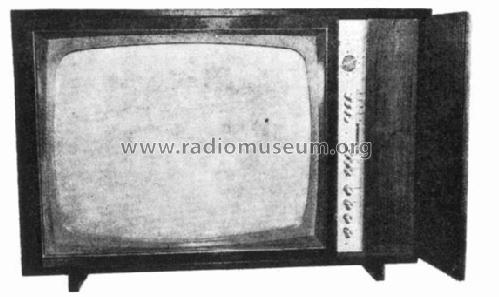

• Model: CL5 - Schneider Frères, Radio-

• Shape
• Tablemodel, with any shape - general.

• Notes
• Picture tube 63 cm.

• Literature/Schematics (1)

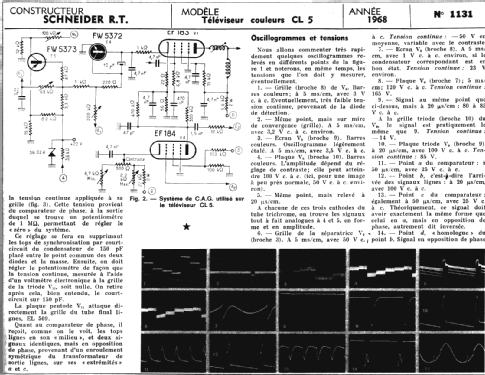

• -- Schematic

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
