• Country
• France

• Manufacturer / Brand
• Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 71026

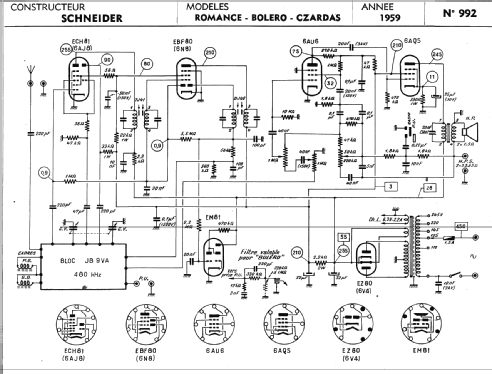

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH81 EBF80 6AU6 6AQ5 EZ80 EM81

• Main principle
• Superheterodyne (common); ZF/IF 480 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• from Radiomuseum.org
• Model: Czardas 59 - Schneider Frères, Radio-

• Notes
• ECH81 ou 6AJ8; EBF80 ou 6N8; EZ80 ou 6V4

• External source of data
• Serge Laffont/Martin Renoth

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.

• Other Models

• Here you find 264 models, 219 with images and 134 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
