Mambo avec œil magique
Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine
- Country
- France
- Manufacturer / Brand
- Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine
- Year
- 1958–1961 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 117882
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Mambo [avec œil magique] - Schneider Frères, Radio-
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 495 x 290 x 190 mm / 19.5 x 11.4 x 7.5 inch
- Notes
-
Cadre ferrite double orientable et antenne OC incorporés. Réglage de tonalité progressif. HP elliptique de 12 x 19 cm, Z = 2.5 Ω.
Coffret sapelli verni.
Ce modèle ne figure pas dans le catalogues Schneider d'années 1958 et 1959, malgré le schéma montrant une date de 1958.
- Net weight (2.2 lb = 1 kg)
- 5.6 kg / 12 lb 5.4 oz (12.335 lb)
- Mentioned in
- -- Schematic
- Literature/Schematics (1)

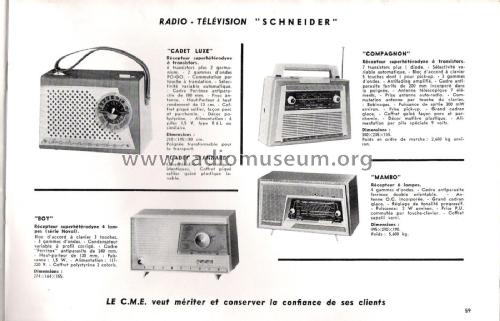

- -- Original prospect or advert (Catalogue 1960)
- Literature/Schematics (2)
- Comptoir Moderne de l'Electricité 1961, p.59
- Author
- Model page created by Antonio Antunes. See "Data change" for further contributors.
