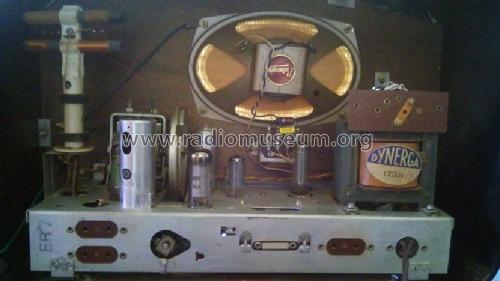

Melodie 57 ER7
Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine
- Country
- France
- Manufacturer / Brand
- Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 245382
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 480 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Melodie 57 ER7 - Schneider Frères, Radio-
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 450 x 300 x 190 mm / 17.7 x 11.8 x 7.5 inch
- Notes
-
2 bandes OC dont 1 bande étalée ("BS-SB" et "BE") pour 49 mètres.
- Author
- Model page created by Angel Lopez Martin. See "Data change" for further contributors.
- Other Models
-
Here you find 263 models, 216 with images and 134 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine
Collections
The model Melodie 57 is part of the collections of the following members.
