• Country
• France

• Manufacturer / Brand
• Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 158494

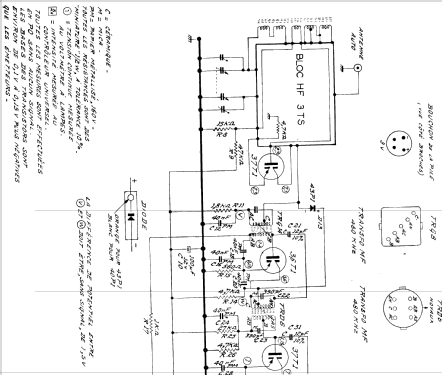

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

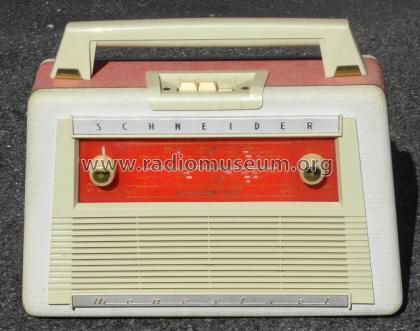

• Model: Menestrel - Schneider Frères, Radio-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 300 x 195 x 95 mm / 11.8 x 7.7 x 3.7 inch

• Notes
• 36TI 37TI 37TI 965TI 941TI 941TI

• Author
• Model page created by Karl Josef Hahn. See "Data change" for further contributors.
