- Country
- France
- Manufacturer / Brand
- Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine
- Year
- 1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 251853

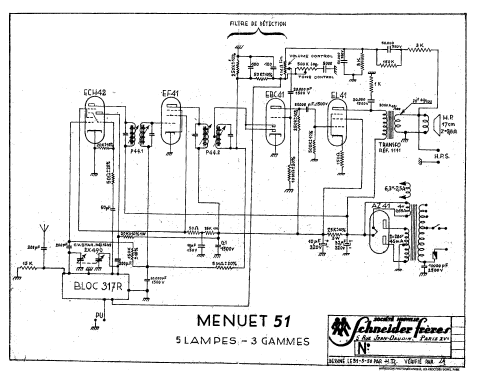

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Menuet 51 - Schneider Frères, Radio-
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Cadran miroir, aiguille lumineuse.
Bloc HF Oréor type 317R
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- Literature/Schematics (1)
- - - Manufacturers Literature
- Author
- Model page created by Jean Marchal. See "Data change" for further contributors.
